Precision Navigation & Positioning

Industry-standard GNSS/INS systems for autonomous vehicles, ADAS testing, mobile mapping, and survey — from the flagship RT3000 to the 26g xNAV650.

0.01° Heading1 cm Position250 Hz OutputITAR-Free

What Is GNSS/INS?

A GNSS/INS system fuses satellite positioning (GPS, GLONASS, Galileo, BeiDou) with inertial measurement (accelerometers and gyroscopes) to deliver position, velocity, and orientation data that neither technology can achieve alone — even through GNSS outages in tunnels, urban canyons, and under bridges.

Centimeter Positioning
RTK-aided position accuracy down to 1 cm for ground-truth reference data.
0.01° Heading
Dual-antenna GNSS heading with post-processed accuracy of 0.01°.
GNSS Outage Bridging
Inertial sensors maintain accuracy through tunnels, canyons, and tree cover.
250 Hz Real-Time
High-rate output for real-time vehicle dynamics and sensor fusion.

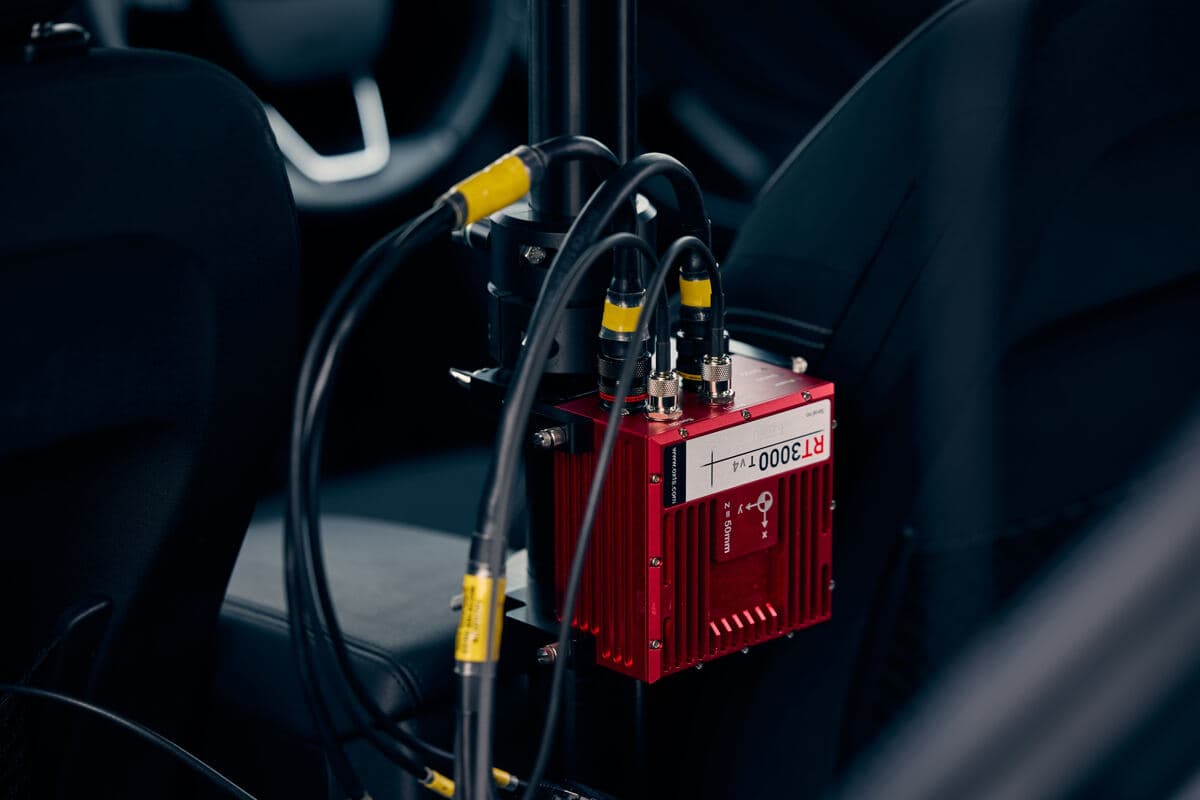

OxTS RT3000
30+
Years of Innovation
1 cm
Position Accuracy
0.01°
Heading Accuracy
250 Hz
Output Rate
Vehicle-Grade INS
Vehicle-Grade INS
RT3000, AV200, RT500 — rack-mounted and roof-mounted systems for automotive testing, ADAS validation, and autonomous driving development.
Compact & OEM Modules
Compact & OEM Modules
xNAV650, OEM1000, OEM3000 — miniature GNSS/INS modules for UAVs, robotics, and custom integration. From 26 g to board-level solutions.
Software & Accessories
Software & Accessories
NAVsuite, Georeferencer, RT-Range — complete post-processing, georeferencing, and real-time range measurement software ecosystem.

Applications

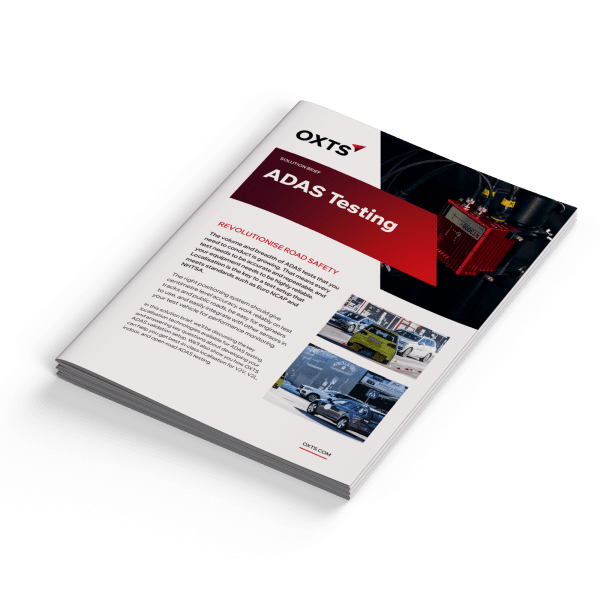

ADAS Testing & Validation

OxTS inertial navigation systems provide the ground-truth reference data needed for ADAS validation. Measure vehicle position, heading, velocity, and attitude with centimeter-level accuracy to verify the performance of autonomous driving features against known trajectories.

RT3000AV200RT500
ADAS Testing & Validation

Software Ecosystem

Every OxTS hardware product is backed by a complete software suite for configuration, data logging, post-processing, and analysis.

NAVsuite

Complete post-processing suite for OxTS INS data. Reprocess logged data with optimal corrections, export in industry-standard formats, and analyze trajectory quality.

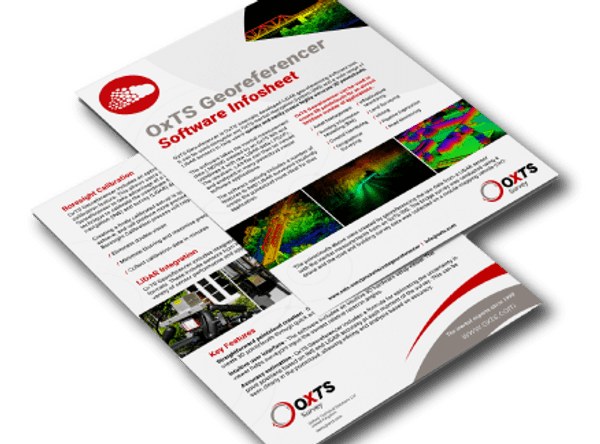

Georeferencer

Transform raw sensor data into georeferenced outputs. Integrates with LiDAR point clouds, camera images, and sonar data for mapping workflows.

RT-Range

Real-time range and closing speed measurement between multiple vehicles. Essential for ADAS testing — AEB, FCW, LDW, and Euro NCAP protocols.

Product Catalog

Explore the full range of OxTS GNSS/INS systems, software, and accessories.

16 products

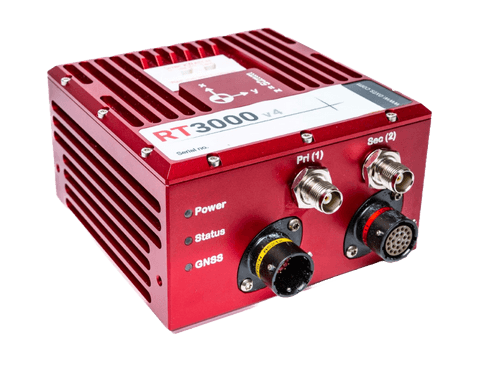

RT3000 v4INS

RT3000 v4

The industry standard GNSS/INS for ADAS and autonomous vehicle testing with 0.01 m position accuracy.

Position: 0.01 mHeading: 0.04°Roll/Pitch: 0.01°
ITAR-FreeIP65

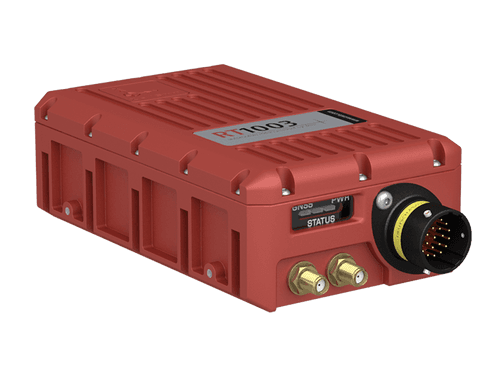

RT1003 v2INS

RT1003 v2

Compact single-box GNSS/INS built to fit ADAS testing targets with 2 cm RTK accuracy.

Position: 0.02 mHeading: 0.1°Roll/Pitch: 0.05°
ITAR-FreeIP65
WayFinderINS

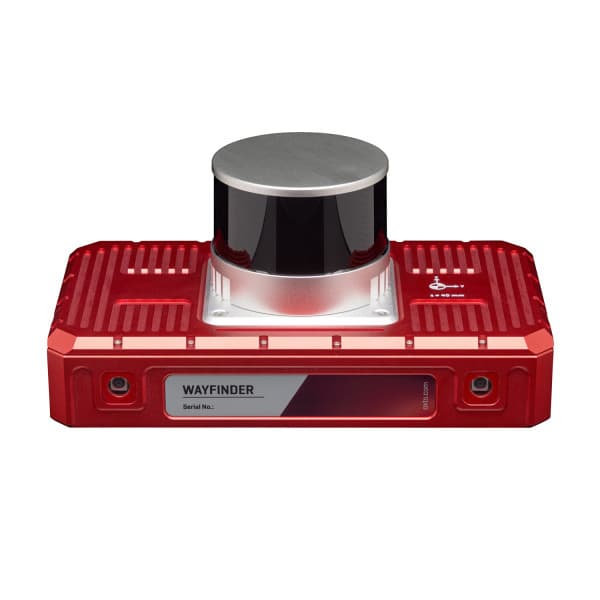

WayFinder

Advanced real-time sensor fusion platform for GNSS-denied localisation with integrated LiDAR and cameras.

Position: 0.01 mHeading: 0.05°GNSS-Denied: 0.03 m
ITAR-Free
AV200INS

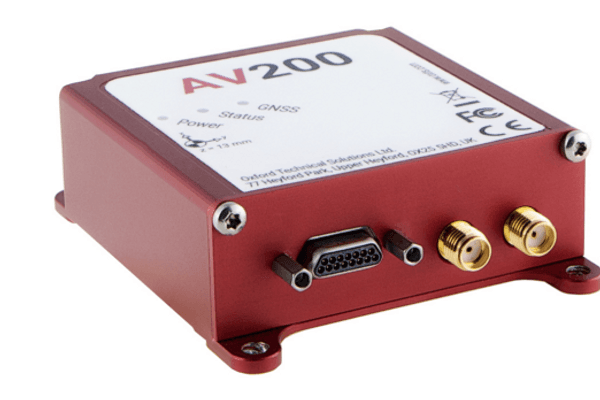

AV200

Small but powerful GNSS/INS balancing price, performance, and size in a 130 g SWaP-optimised package.

Position: 0.02 mHeading: 0.1°Weight: 130 g
ITAR-Free
RT500 v1INS

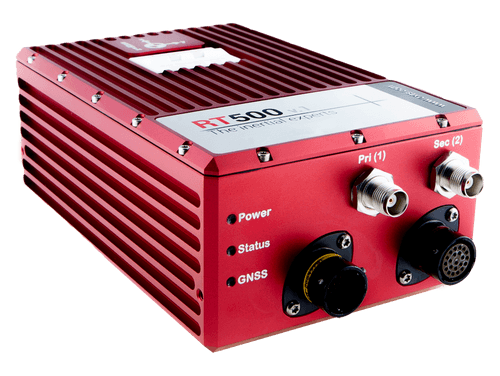

RT500 v1

Entry-level INS for slip angle measurement and brake testing with dual-antenna GNSS and CAN-FD interface.

Slip Angle: 0.25°Velocity: 0.1 km/hOutput Rate: 250 Hz
ITAR-Free

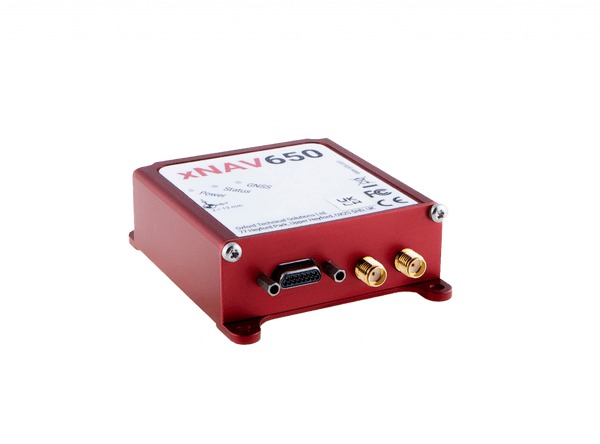

xNAV650INS

xNAV650

OxTS' smallest and lightest INS at 130 g with 2 cm position accuracy for UAV and mobile mapping.

Position: 0.02 mWeight: 130 gPower: 4 W
ITAR-Free
OEM1000OEM

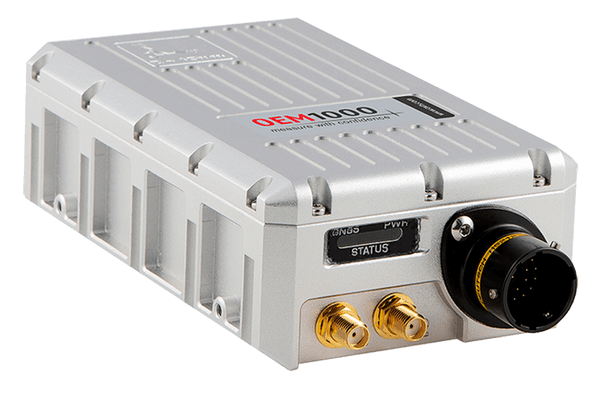

OEM1000

OEM GNSS/INS module for integration into third-party products and custom systems.

Form Factor: OEM boardGNSS: Multi-constellation
ITAR-Free
OEM3000OEM

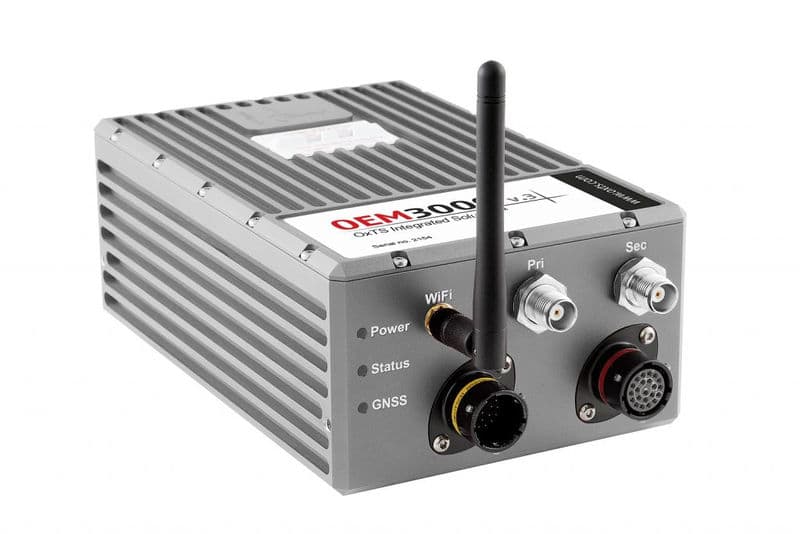

OEM3000

High-end OEM GNSS/INS module with top-tier accuracy for demanding embedded applications.

Form Factor: OEM boardGNSS: Dual survey-grade
ITAR-Free

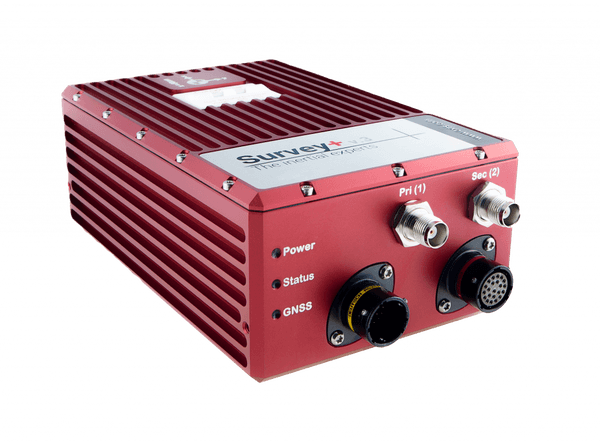

Survey+Survey

Survey+

Purpose-built INS for mobile mapping and surveying with high-accuracy georeferencing.

Application: Mobile mappingOutput: Georeferenced LASGNSS: Multi-constellation RTK
ITAR-Free
RT-XLANAccessories

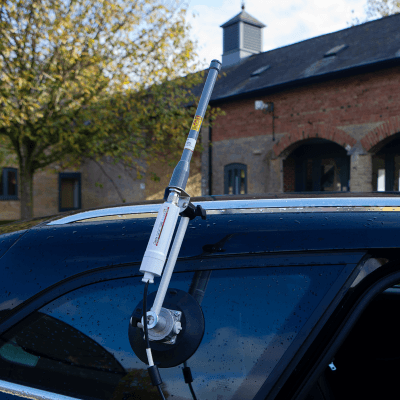

RT-XLAN

High-performance WLAN radio providing 1 km vehicle-to-vehicle data communication for ADAS testing.

Range: 1 kmType: WLAN radio
ITAR-Free
RT-Base SRTK

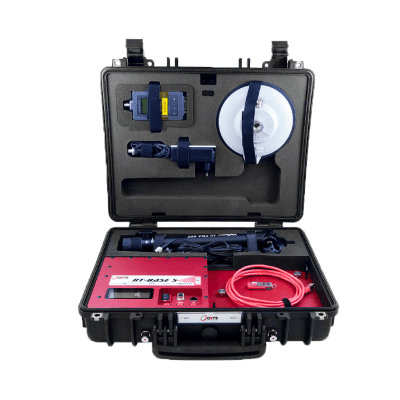

RT-Base S

Mobile RTK base station providing local GNSS corrections for centimetre-level positioning.

Type: RTK base stationAccuracy: Centimetre-level
ITAR-Free
GeoreferencerSoftware

Georeferencer

Software to combine INS navigation data with raw LiDAR data to create georeferenced 3D point clouds.

Output: LAS point cloudCalibration: Automated boresight
ITAR-Free

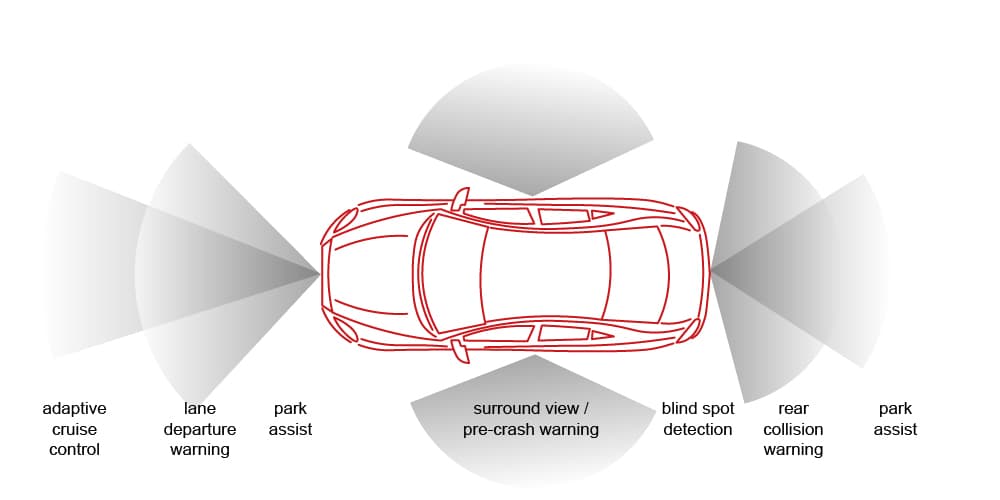

RT-Range SADAS

RT-Range S

Real-time ADAS measurement system for multi-target tracking, range, time-to-collision, and Euro NCAP test protocols.

Targets: Up to 4Measurements: Real-timeProtocol: Euro NCAP
ITAR-Free
xREDOEM

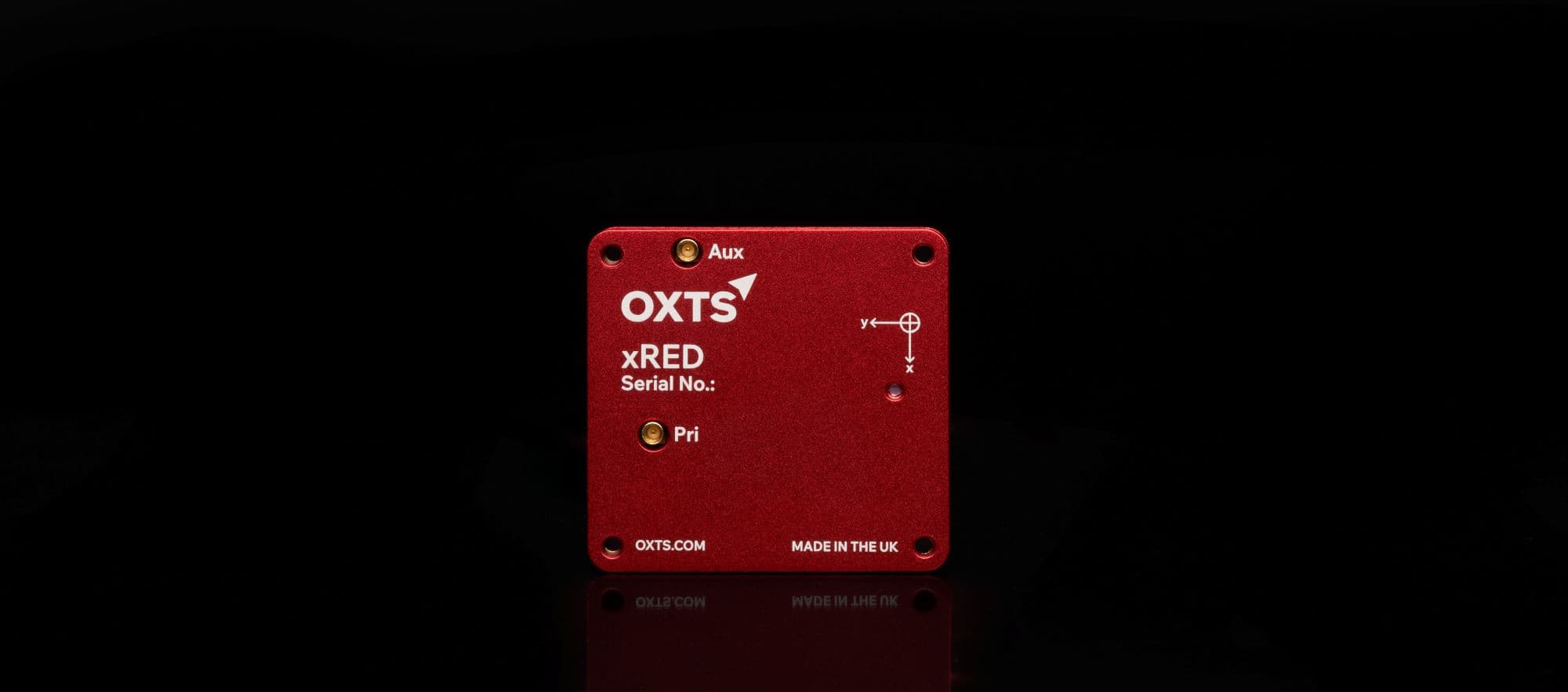

xRED

Board-set INS delivering near RT3000 v4 performance in a fraction of the size for integrators and SWaP-constrained platforms.

Form Factor: Board-setPerformance: Near RT3000 v4GNSS: Dual survey-grade
ITAR-Free
RT-UPSAccessories

RT-UPS

Uninterruptible power supply keeping OxTS equipment running for up to 1 minute during vehicle power loss.

Backup: Up to 1 minType: UPS
ITAR-Free
GX/IXIMU

GX/IX

Standalone inertial measurement units for high-accuracy motion measurement and control.

Type: Standalone IMUSensor: MEMS
ITAR-Free

Not sure which OxTS product is right for you?

Our team can help you select the ideal GNSS/INS system for your application, budget, and accuracy requirements.

Contact Our Team →View Our Services
