AV200
Small but powerful — GNSS/INS engineered for SWaP-constrained platforms
Overview

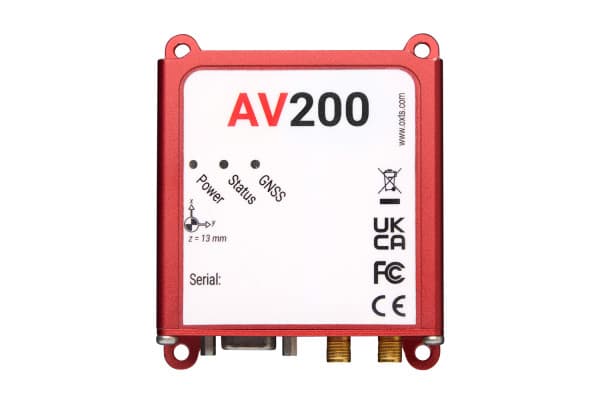

AV200
The AV200 is a small but powerful GNSS/INS that balances price, performance, and size in a SWaP-constrained package. At just 77 × 63 × 24 mm and 130 g, it delivers centimetre-level positioning without compromising on navigation accuracy.
It incorporates two survey-grade, quad-constellation GNSS receivers and a high-quality MEMS inertial measurement unit. The gx/ix tightly-coupled GNSS engine maintains reliable performance in challenging satellite environments, while Ethernet and CAN interfaces provide straightforward vehicle integration.
ITAR-free design allows unrestricted international deployment, and customisable functionality adapts to specific application requirements. Competitive bulk pricing makes the AV200 ideal for fleet deployments and volume OEM programmes. Free NAVsuite software is included.
Authorised OxTS Distributor
Official sales, support & integration services
Features
Key Capabilities
Ultra-Compact Form Factor
At 77 × 63 × 24 mm and 130 g, the AV200 fits where other INS systems cannot—inside dashboard panels, robotics enclosures, and UAV payloads.
Dual Survey-Grade GNSS
Quad-constellation receivers (GPS, GLONASS, Galileo, BeiDou) with gx/ix tightly-coupled engine for reliable operation in urban environments.
4 W Power Consumption
Industry-leading low power draw enables battery-powered and solar-powered deployments without thermal management.
Ethernet & CAN Interfaces
Simple DB9 connector with Ethernet and CAN provides plug-and-play integration into automotive test setups and robotic platforms.
Customisable Functionality
Off-the-shelf customisation options and competitive bulk pricing for OEM integrations and fleet deployments.
Specifications
Technical Details
Applications
Use Cases
Autonomous Vehicle Development
Cost-effective ground truth and localisation for AV fleets. Bulk pricing and compact size make the AV200 ideal for multi-vehicle deployments.
Robotics & AGVs
Ultra-compact form factor and low power consumption integrate seamlessly into autonomous mobile robots and guided vehicles.
Mobile Mapping
Centimetre-level positioning for vehicle-mounted and backpack-mounted mobile mapping systems with LiDAR integration.
Software
Compatible Software & Tools
NAVsuite
Free comprehensive software platform for INS configuration, real-time monitoring, and post-processing. Used by over 1,000 users globally.
- NAVsolve post-processing with differential corrections
- NAVgraph data visualization for large files
- Real-time monitoring with customizable templates
- INS configuration wizard
- Data export to spreadsheets, KML, binary, and images
- Forwards/backwards processing for GNSS signal loss
Downloads
Documents & Datasheets
Request product documentation and our team will email you the files directly.
AV200 Datasheet
datasheet
Related

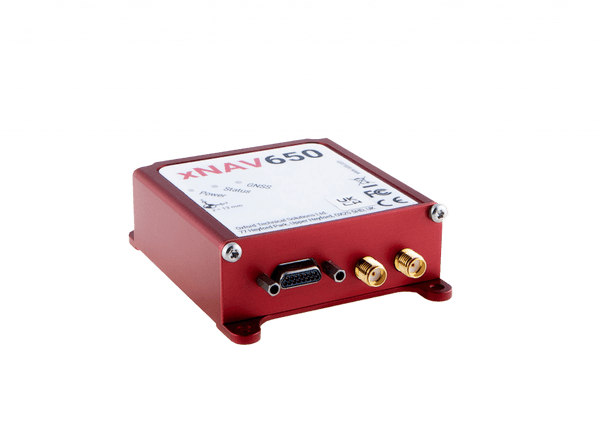

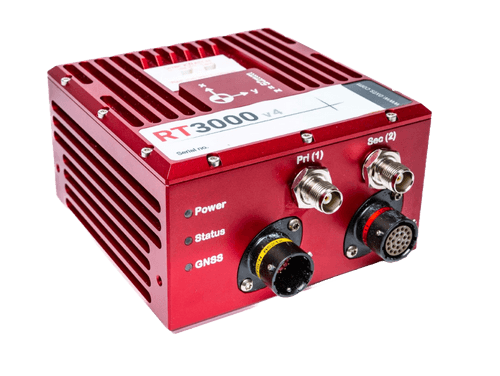

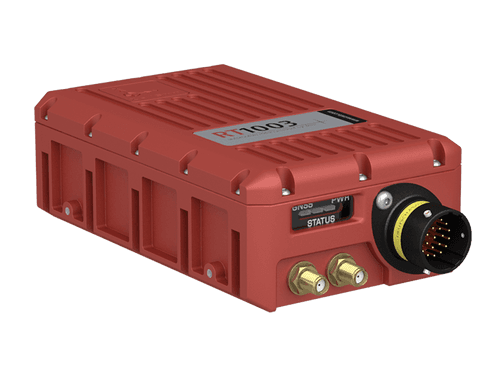

Other OxTS Products
Ready to Get Started with the AV200?
Contact our team for pricing, technical questions, or to arrange a demonstration.
