RT3000 v4
The industry standard for ADAS and autonomous vehicle testing
Overview

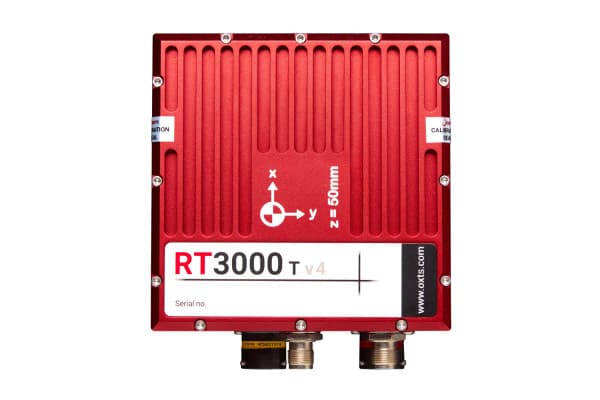

RT3000 v4
The RT3000 v4 is the industry standard GNSS/INS for ADAS and autonomous vehicle testing. It combines dual survey-grade, quad-constellation GNSS receivers with the latest IMU10 inertial measurement unit to deliver centimetre-level position and sub-degree orientation measurements in real time.
With gx/ix single-satellite aiding technology, the RT3000 v4 maintains accurate positioning even in the most challenging GNSS environments—urban canyons, tree-lined roads, and multi-storey car parks. An embedded NTRIP client simplifies correction data reception, removing the need for external radios.
The IP65-rated enclosure protects against dust and rain, while ITAR-free components enable unrestricted global shipping. A DO-160 certified aerospace variant and Terrastar Corrections variant are also available. Free NAVsuite post-processing software is included for configuration, monitoring, and data visualization.
Authorised OxTS Distributor
Official sales, support & integration services
Features
Key Capabilities
Dual Survey-Grade GNSS
Quad-constellation receivers (GPS, GLONASS, Galileo, BeiDou) provide redundant satellite tracking for maximum availability in challenging environments.
IMU10 Technology
Latest-generation inertial measurement unit delivers 0.01° roll/pitch accuracy and robust performance through OxTS Multi-Core IMU Technology.
gx/ix Single-Satellite Aiding
Maintains centimetre-level accuracy with as few as one visible satellite, enabling reliable operation in urban canyons and under bridges.
Embedded NTRIP Client
Receive RTK corrections directly over the internet without external radio hardware, simplifying field deployment.
IP65 Rugged Enclosure
Dust-tight and protected against water jets, suitable for outdoor mounting on test vehicles in all weather conditions.
ISO 17025 Calibration
Optional accredited calibration service ensures traceable measurement performance for regulated testing programmes.
Specifications
Technical Details
Applications
Use Cases
ADAS Validation
Ground-truth reference for AEB, lane-keeping, and blind-spot detection testing. Meets Euro NCAP accuracy requirements for all current and planned test protocols.
Vehicle Dynamics
High-rate slip angle, body motion, and suspension characterisation for chassis development. 0.05° slip angle accuracy at 250 Hz output rate.
Autonomous Vehicle Development
Centimetre-level ground truth for perception sensor validation, localisation algorithm benchmarking, and scenario replay.
Open-Road Ground Truthing
Reliable positioning on public roads with gx/ix technology maintaining accuracy through tunnels, urban canyons, and tree-lined routes.
Software
Compatible Software & Tools
NAVsuite
Free comprehensive software platform for INS configuration, real-time monitoring, and post-processing. Used by over 1,000 users globally.
- NAVsolve post-processing with differential corrections
- NAVgraph data visualization for large files
- Real-time monitoring with customizable templates
- INS configuration wizard
- Data export to spreadsheets, KML, binary, and images
- Forwards/backwards processing for GNSS signal loss
RT-Range Suite
ADAS testing software for real-time vehicle-to-vehicle (V2V) and vehicle-to-lane (V2L) measurements. Euro NCAP compatible.
- Real-time V2V range, bearing, and heading
- V2L lane position tracking
- Up to 4 targets simultaneously
- Bird’s Eye View visualization
- Advanced polygon system (up to 24 points)
- CAN and Ethernet output for test automation
Downloads
Documents & Datasheets
Request product documentation and our team will email you the files directly.
RT3000 v4 Datasheet
datasheet
RT3000 v4 DO-160 Datasheet
datasheet
