xNAV650
Precise localisation in the smallest, lightest OxTS package
Overview
xNAV650

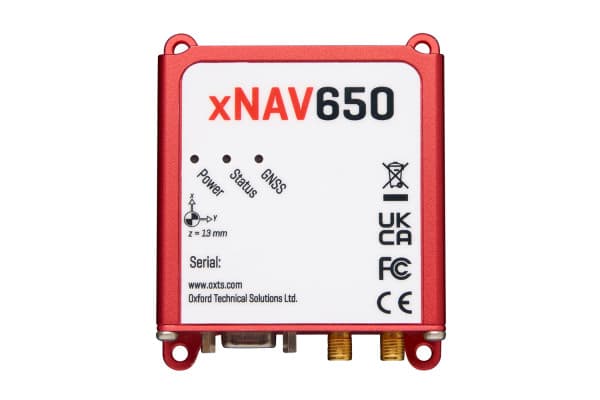

The xNAV650 is OxTS' smallest, lightest, and most affordable Inertial Navigation System, combining over 20 years of navigation experience with cutting-edge MEMS IMU sensors and survey-grade GNSS receivers.
At just 77 × 63 × 24 mm and 130 g, the xNAV650 is ideal for UAV integration, lightweight mapping payloads, and space-constrained mobile mapping platforms. It delivers 2 cm RTK position accuracy with 0.1° heading and 0.05° pitch/roll.
The gx/ix tightly-coupled GNSS engine maintains reliable performance in challenging environments, while Ethernet and serial interfaces with optional PTP timestamping simplify integration with LiDAR scanners and mapping equipment. Free NAVsuite software is included.
Authorised OxTS Distributor
Official sales, support & integration services
Features
Key Capabilities
Ultra-Lightweight Design
At 130 g and 4 W, the xNAV650 is the lightest OxTS INS—ideal for weight-sensitive UAV and backpack mapping payloads.
Survey-Grade GNSS
Dual quad-constellation GNSS receivers with gx/ix tightly-coupled engine provide 2 cm RTK accuracy even in difficult satellite environments.
PTP Timestamping
Optional Precision Time Protocol over Ethernet synchronises INS data with LiDAR and camera triggers to nanosecond accuracy.
LiDAR Integration Ready
Direct compatibility with major LiDAR manufacturers and OxTS Georeferencer software for turnkey mobile mapping solutions.
Specifications
Technical Details
Applications
Use Cases
UAV Ground Truthing
Lightweight enough for UAV payloads, the xNAV650 provides centimetre-level ground truth for aerial survey validation and sensor benchmarking.
Mobile Mapping
Vehicle, backpack, or trolley-mounted mobile mapping with direct LiDAR integration and Georeferencer software for turnkey point cloud generation.
Surveying & GIS
Survey-grade positioning for corridor mapping, asset surveys, and infrastructure inspection with post-processed accuracy to 2 cm.
Software
Compatible Software & Tools
NAVsuite
Free comprehensive software platform for INS configuration, real-time monitoring, and post-processing. Used by over 1,000 users globally.
- NAVsolve post-processing with differential corrections
- NAVgraph data visualization for large files
- Real-time monitoring with customizable templates
- INS configuration wizard
- Data export to spreadsheets, KML, binary, and images
- Forwards/backwards processing for GNSS signal loss

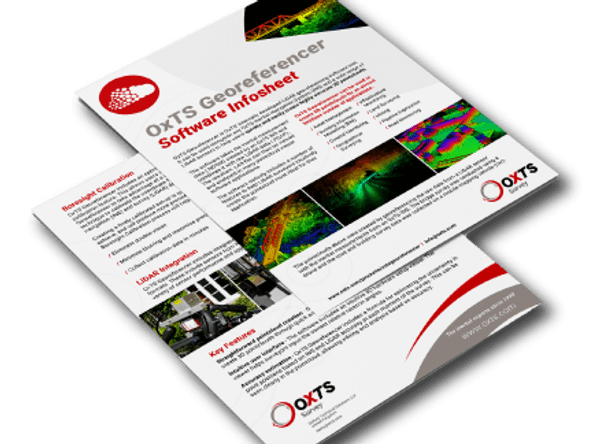

Georeferencer

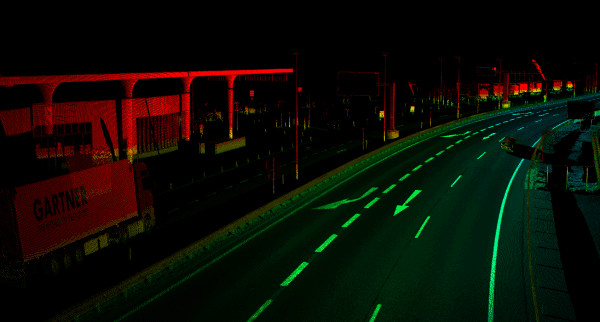

Software to combine INS navigation data with raw LiDAR data to create georeferenced 3D point clouds in LAS format.
- Automated data-driven boresight calibration
- Point-level precision analytics and filtering
- LAS format point cloud output
- Supports Velodyne, Hesai, RoboSense, Riegl, Z+F
Downloads
Documents & Datasheets
Request product documentation and our team will email you the files directly.
xNAV650 Datasheet
datasheet
Related

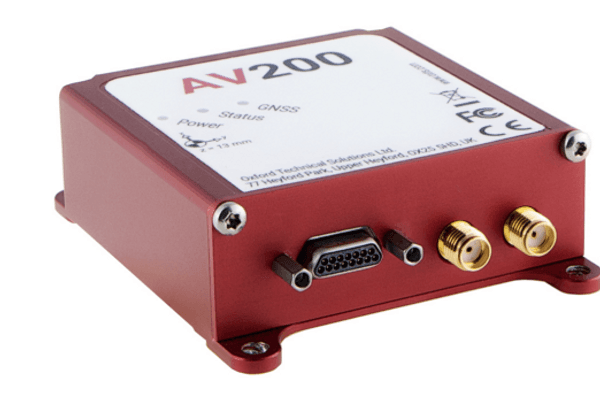

Other OxTS Products
Ready to Get Started with the xNAV650?
Contact our team for pricing, technical questions, or to arrange a demonstration.
