RT-Range S
Real-time multi-target ADAS measurement — Euro NCAP ready
Overview
RT-Range S

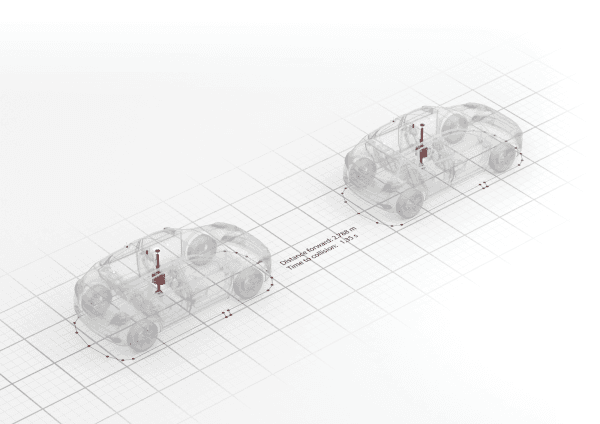

The RT-Range S creates a real-time network capable of tracking multiple targets, calculating distance, time to collision, and other relative measurements between vehicles, pedestrians, cyclists, and infrastructure. It is the essential measurement system for ADAS testing and validation.
Targets can include road vehicles, vulnerable road users (VRUs) such as cyclists or pedestrians, Euro NCAP soft targets, and any platform equipped with an OxTS INS. The system outputs real-time CAN and Ethernet data for test automation and provides Bird's Eye View visualization for live monitoring.

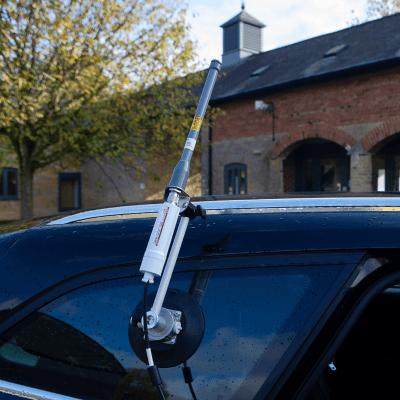

RT-Range S is compatible with all OxTS INS hardware and uses the RT-XLAN wireless link for vehicle-to-vehicle communication at up to 1 km range. It supports all current Euro NCAP test protocols including AEB Car-to-Car, AEB VRU, and LSS scenarios.
Authorised OxTS Distributor
Official sales, support & integration services
Features
Key Capabilities
Multi-Target Tracking
Track up to 4 targets simultaneously with real-time range, bearing, heading, time-to-collision, and closing speed between all vehicle/VRU combinations.
Euro NCAP Compatible
Supports all current Euro NCAP test protocols including AEB Car-to-Car, AEB VRU Pedestrian, AEB VRU Cyclist, and Lane Support Systems.
Bird's Eye View Visualization
Real-time overhead view of all targets with trajectory tracking, collision zones, and customizable polygon trigger areas.
Advanced Polygon Triggers
Define complex trigger zones with up to 24-point polygons for automated test execution and pass/fail criteria.
Specifications
Technical Details
Applications
Use Cases
Euro NCAP ADAS Testing
Complete measurement system for AEB Car-to-Car, AEB VRU, and Lane Support Systems testing to Euro NCAP protocols.
AEB Validation
Real-time time-to-collision and range measurements for Autonomous Emergency Braking validation across all test scenarios.
Multi-Vehicle Scenarios
Simultaneous tracking of multiple vehicles and VRU targets for complex intersection and multi-agent ADAS scenarios.
Software
Compatible Software & Tools
RT-Range Suite
ADAS testing software for real-time vehicle-to-vehicle (V2V) and vehicle-to-lane (V2L) measurements. Euro NCAP compatible.
- Real-time V2V range, bearing, and heading
- V2L lane position tracking
- Up to 4 targets simultaneously
- Bird’s Eye View visualization
- Advanced polygon system (up to 24 points)
- CAN and Ethernet output for test automation
NAVsuite
Free comprehensive software platform for INS configuration, real-time monitoring, and post-processing. Used by over 1,000 users globally.
- NAVsolve post-processing with differential corrections
- NAVgraph data visualization for large files
- Real-time monitoring with customizable templates
- INS configuration wizard
- Data export to spreadsheets, KML, binary, and images
- Forwards/backwards processing for GNSS signal loss
Downloads
Documents & Datasheets
Request product documentation and our team will email you the files directly.
RT-Range S Datasheet
datasheet
