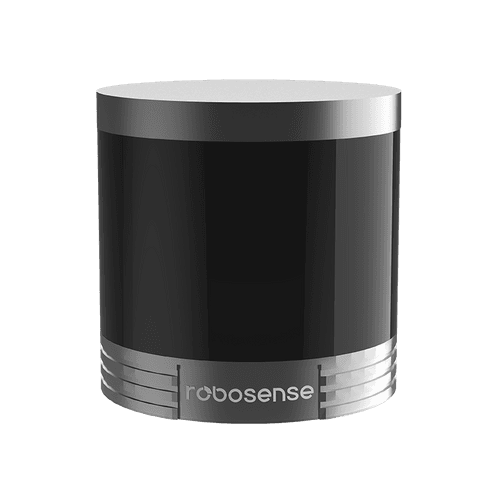

RS-Helios
32-beam LiDAR with customizable FOV, 150 m range, and IP67 protection for robotics and AV applications.
Overview
The RS-Helios is a 32-beam LiDAR sensor designed for autonomous driving, robotics, and intelligent transportation applications. It adopts a new modular architecture that is 29% smaller and 60% lower in cost than the RS-LiDAR-32. Available in three customizable vertical FOV configurations — 26° (highest resolution at 0.5°), 31° (uniform 1° resolution), and 70° ultra-wide — the Helios adapts to diverse perception needs from long-range detection to blind-spot coverage. With IP67 protection, -30°C to 60°C operating range, and 12 W power consumption, the Helios is built for demanding outdoor deployments.
Key Features
32-beam mechanical LiDAR
3 customizable vertical FOV options
150 m detection range
±2 cm measurement accuracy
IP67 dust and water protection
12 W low power consumption
29% smaller than RS-LiDAR-32
60% lower cost than predecessor
905 nm Class 1 eye-safe laser
Dual-return capable (1.15 M pts/s)
Technical Specifications
Channels32 beams
Range150 m (80 m @ 10% reflectivity)
Blind Spot≤ 0.1 m
Horizontal FOV360°
Vertical FOV26° / 31° / 70° (customizable)
Horizontal Resolution0.2° @ 10 Hz / 0.4° @ 20 Hz
Accuracy±2 cm (1–100 m)
Point Rate576,000 pts/s (single return)
Wavelength905 nm
Laser SafetyClass 1
Interface100 Mbps Ethernet (UDP)
IP RatingIP67
Power12 W
Input Voltage9–32 V
Operating Temp-30°C to 60°C
Weight~1 kg
Dimensionsφ100 × 100 mm
