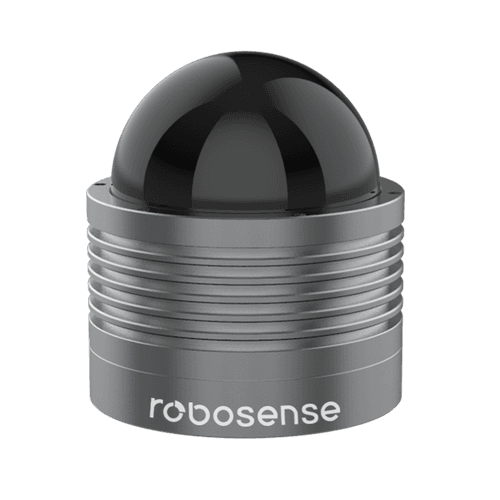

RS-BPearl
Compact 32-beam LiDAR with 360° × 90° FOV for blind-spot detection and near-field sensing.
Overview
The RS-BPearl is a compact, solid-state hybrid LiDAR designed for blind-spot detection and near-field sensing, complementing long-range LiDAR systems on autonomous vehicles and robots. With a 360° horizontal and 90° vertical field of view, the BPearl provides complete hemispherical coverage in a package just 100 mm tall and 0.92 kg. Innovative signal processing enables object detection within centimetres. Particularly cold-resistant with operation down to -40°C, the RS-BPearl maintains full performance in extreme conditions.
Key Features
360° × 90° hemispherical coverage
32-beam solid-state hybrid design
Object detection within centimetres
Compact 0.92 kg form factor
Extreme cold resistance to -40°C
Blind-spot and near-field detection
Complements long-range LiDAR systems
Technical Specifications
Channels32 beams
Range30 m @ 10% reflectivity (100 m max)
Min Range0.1 m
Horizontal FOV360°
Vertical FOV90°
Horizontal Resolution0.2° @ 10 Hz / 0.4° @ 20 Hz
Accuracy±3 cm
Dimensionsφ111 × 100 mm
Weight0.92 kg
Operating Temp-40°C to 65°C
TypeSolid-state hybrid
