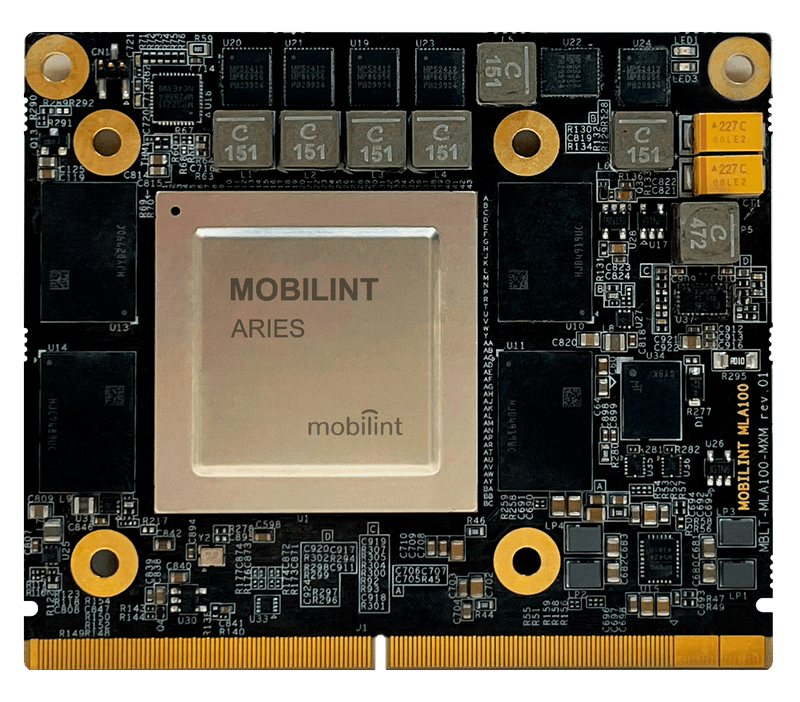

MLA100 MXM
82×70mm embedded AI module powered by the ARIES NPU
Overview
MLA100 MXM
The MLA100 MXM packs the full ARIES NPU into the industry-standard MXM Type A form factor. Designed for system integrators building ruggedized, embedded, and space-constrained AI platforms — from autonomous robots to industrial inspection systems.
Powered by a single DC +12V rail with no external power connector needed. Extended temperature range (-35°C to 75°C) supports factory floor, outdoor, and harsh-environment installations.
Validated for deployment in the Advantech AIR-310 industrial AI platform.
Authorised Mobilint Distributor
Official sales, integration & support services
Features
Key Capabilities
Industry-Standard Form Factor
MXM Type A (82×70mm) fits existing module bays — no custom carrier boards or proprietary connectors.
Extended Temperature Range
Operates from −35°C to 75°C for factory floor, outdoor, and harsh-environment deployment.
No External Power
DC +12V rail powered with no external connector. Simplifies integration in embedded chassis.
Validated Integration
Tested and validated in the Advantech AIR-310 industrial AI platform for immediate deployment.
Specifications
Technical Details
Applications
Use Cases
Robotics
Embed directly into robot chassis for real-time vision, path planning, and sensor fusion. The compact MXM form factor fits where PCIe cards cannot.
Industrial Systems
Validated for deployment in the Advantech AIR-310. Extended temperature range supports factory floor and outdoor installations.
AI Kiosks
Run real-time vision models in self-service terminals, digital signage, and interactive displays. Low power and fanless-compatible thermal envelope.
Portable Devices
Bring 80 TOPS of AI performance to battery-powered and field-deployed systems — handheld inspection tools and portable diagnostics.
Downloads
Documents & Datasheets
Request product documentation and our team will email you the files directly.
MLA100 MXM Datasheet
datasheet
Related
Other Mobilint Products
Ready to Get Started with the MLA100 MXM?
Contact our team for pricing, technical questions, or to request an evaluation unit.
